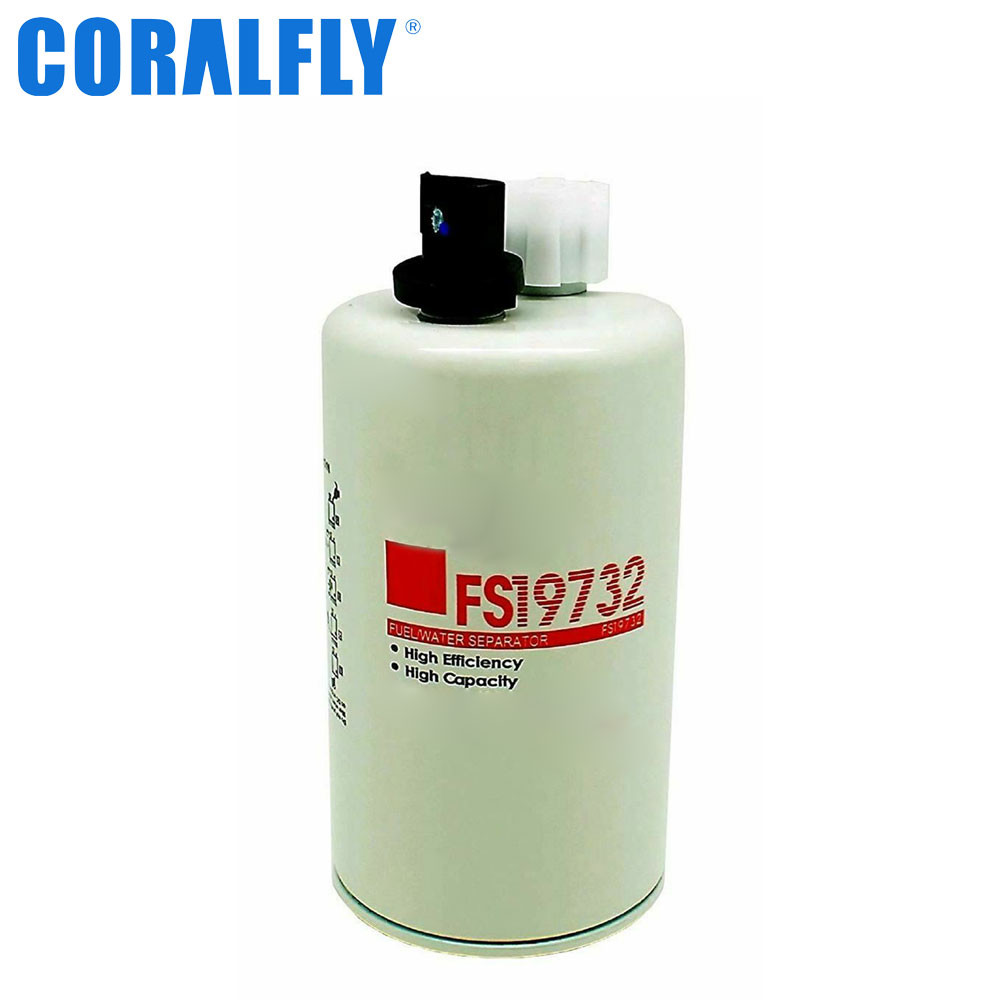

FS19732 Fleetguard Cummins Engines Fuel Water Separator Filter Spin-on with Drain Sensor Port and Reusable Sensor Filter
Attributes
| Outer Diameter | 3.67 inch (93.2 mm) |
| Thread Size | 1-14 UN |
| Length | 8.40 inch (213.4 mm) |
| Gasket OD | 2.83 inch (72 mm) |
| Gasket ID | 2.44 inch (62 mm) |
| Efficiency 99% | 10 micron |
| Efficiency Test Std | SAE J1985 |
| Emulsified H2O Efficiency | 95.00 Percent |
| Type | Water Separator |
| Style | Spin-On |
| Brand | Twist&Drain™ |
| Media Type | Composite |
| Notes | Not for Marine Applications |
Packaged Dimensions
| Gross Length | 3.7 IN |
| Gross Width | 3.7 IN |
| Gross Height | 8.4 IN |
| Gross Weight | 1.31 LB |
| Gross Volume | 0.0665 FT3 |
Service provide:
OEM ODM & OBM service; Coralfly packaging or according to customer's need packaging
Quality Guarantee:
If there have any quality problems with CORALFLY products, we are willing to be replaced free.
After-sales service:
There is any problem caused by using CORALFLY products:
1). Keep the defective products and contact with Coral Machinery or Coral Machinery distributor
of your religion timely.
2). Do not cut or change any suspected problem products, if necessary, Send the suspected filter
and the attached oil and the coolant sample together to Coral Machinery or Coral Machinery
distributor of your religion timely.
3). Attached with repair document, parts list, labor costs and any other materials which can support
a claim for compensation.
OEM Cross Reference
| Manufacturer Name | Manufacturer Part # |
| ATLAS COPCO | 2657828816 |
| BUHLER VERSATILE | 86038508 |
| CASE/CASE IH | 87356193 |
| CUMMINS | 3973233 |
| DOOSAN | 23061666 |
| DYNAPAC | 4700945147 |
| HITACHI | 263F107031 |
| HYSTER | 1635303 |
| INGERSOLL RAND | 57890428 |
| JCB | 32925763 |
| JLG | 70020349 |
| KALMAR | 9238290700 |
| LINDE | 0019830505 |
| LIUGONG | 40C0449 |
| MACDON | 111972 |
| MASSEY FERGUSON | 71410010 |
| MCCORMICK | 715507A1 |
| MECALAC | 537A0388 |
| NEW HOLLAND | 84477359 |
| SAKAI | 4032390050 |
| SANY | B222100000444 |
| SENNEBOGEN | 103139 |
| TADANO | 36361415030 |
| TATA | 288047704904 |
| TEREX | 704970240 |
| VMC | FS550848 |
| VOLVO | 43919935 |
Equipment
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
| VOLVO CONSTRUCTION EQUIPMENT SD200F | - | COMPACTOR | SD SERIES | CUMMINS QSB6.7 | - |
| VOLVO CONSTRUCTION EQUIPMENT SD200DX | - | COMPACTOR | SD SERIES | CUMMINS QSB6.7 | - |
| VOLVO CONSTRUCTION EQUIPMENT SD190DX | - | COMPACTOR | SD SERIES | CUMMINS QSB6.7 | - |
| VOLVO CONSTRUCTION EQUIPMENT SD160F | - | COMPACTOR | SD SERIES | CUMMINS QSB6.7 | - |
| VOLVO CONSTRUCTION EQUIPMENT SD160DX | - | COMPACTOR | SD SERIES | CUMMINS QSB6.7 | - |
| VOLVO CONSTRUCTION EQUIPMENT SD122D | - | COMPACTOR | SD SERIES | CUMMINS QSB4.5 | - |
| VOLVO CONSTRUCTION EQUIPMENT SD105F | - | COMPACTOR | SD SERIES | CUMMINS QSB4.5 | - |
| VOLVO CONSTRUCTION EQUIPMENT SD105DX | - | COMPACTOR | SD SERIES | CUMMINS QSB4.5 | - |
| VOLVO CONSTRUCTION EQUIPMENT SD100F | - | COMPACTOR | SD SERIES | CUMMINS QSB4.5 | - |
| VOLVO CONSTRUCTION EQUIPMENT SD100D | - | COMPACTOR | SD SERIES | CUMMINS QSB4.5 | - |
| VERSATILE 400 | - | TRACTOR | - | CUMMINS QSL9 | - |
| VERSATILE 320 | - | TRACTOR | - | CUMMINS QSC8.3 | - |
| TATA SFC407 | - | LIGHT TRUCK | - | TATA 497SPT | - |
| TATA LPT909 | - | TRUCK | - | TATA 497SPT | - |
| TATA LPT709 | - | TRUCK | - | TATA 497SPT | - |
| TATA LPT1109TC | - | TRUCK | - | TATA 497SPT | - |
| TATA LPO1512 | - | BUS | - | TATA 497SPT | - |
| TATA LP912 | - | BUS | - | TATA 497SPTC | - |
| TATA LP709 | - | BUS | - | TATA 497SPT | - |
| TATA LP1112 | - | BUS | - | TATA 497SPTC | - |
| TATA 315V | - | BACKHOE LOADER | - | TATA 497SPTC | - |
| TADANO GR500N2 | - | CRANE | - | CUMMINS QSL9 | - |
| SENNEBOGEN 825M | - | MATERIAL HANDLER | - | CUMMINS QSB6.7 | - |
| SAKAI SV505TF | - | COMPACTOR | - | CUMMINS QSB4.5 | - |
| SAKAI SV505T | - | COMPACTOR | - | CUMMINS QSB4.5 | - |
| SAKAI SV505D | - | COMPACTOR | - | CUMMINS QSB4.5 | - |
| NEW HOLLAND T9020 | - | TRACTOR | T9000 SERIES | - T9020 | - |
| NEW HOLLAND T9010 | - | TRACTOR | T9000 SERIES | - T9010 | - |
| NEW HOLLAND T8050 | - | TRACTOR | T8000 SERIES | - T8050 | - |
| NEW HOLLAND T8040 | - | TRACTOR | T8000 SERIES | CUMMINS 6CTAA8.3 | - |
| NEW HOLLAND T8030 | - | TRACTOR | T8000 SERIES | CUMMINS 6CTAA8.3 | - |
| NEW HOLLAND T8020 | - | TRACTOR | T8000 SERIES | CUMMINS 6CTAA8.3 | - |
| NEW HOLLAND T8010 | - | TRACTOR | T8000 SERIES | CUMMINS 6CTAA8.3 | - |
| MCCORMICK ZTX280 | - | TRACTOR | ZTX SERIES | CUMMINS QSC8.3 | TIER 3 |
| MCCORMICK ZTX260 | - | TRACTOR | ZTX SERIES | CUMMINS QSC8.3 | TIER 3 |
| MCCORMICK ZTX230 | - | TRACTOR | ZTX SERIES | CUMMINS QSC8.3 | TIER 3 |
| MASSEY FERGUSON MF9790 | - | COMBINE | MF 9700 SERIES | CUMMINS QSL9 | - |
