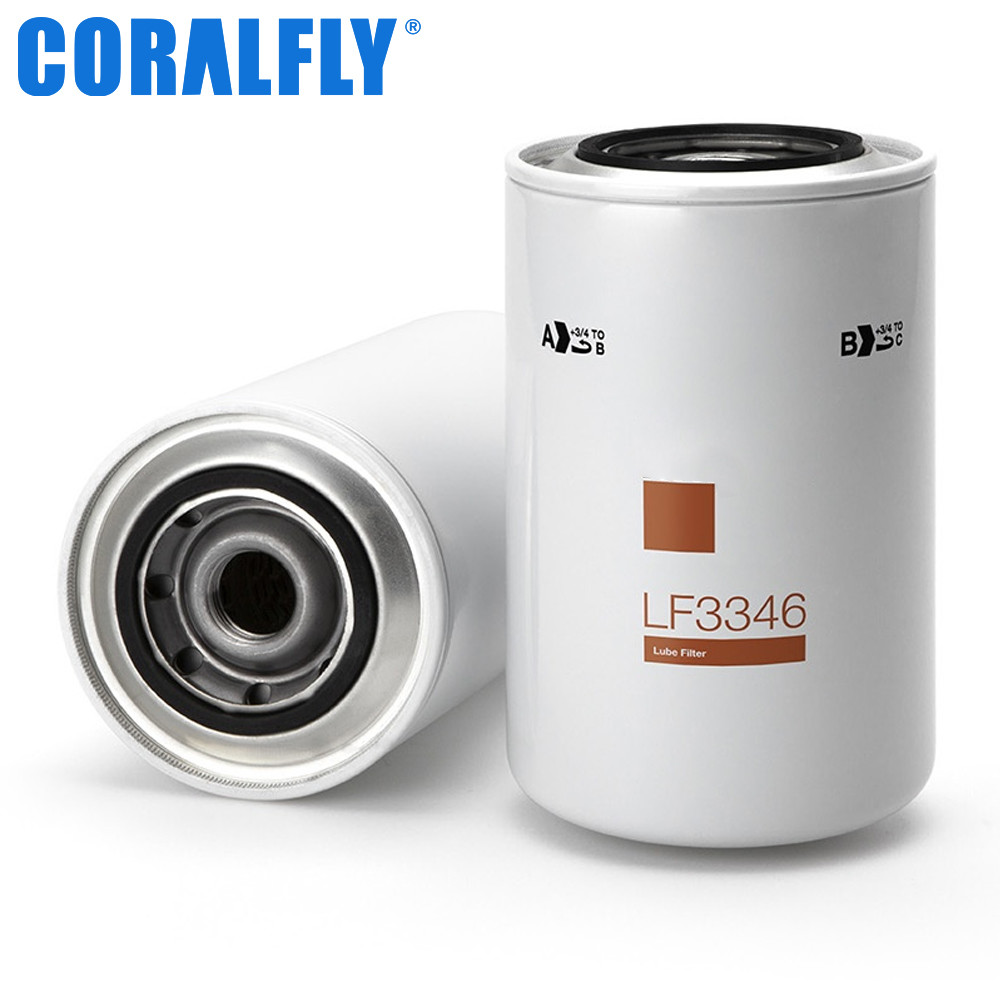

Truck Filter Lf3346 Diesel Engine Oil Filter CORALFLY Fliter
Since 2001 CORALFLY filters are professional supplier of Filters for generators, construction machinery, mining machinery ,air compressor, passenger cars, commercial vehicles, buses, heavy-duty and light-duty trucks ano other industrial-use vehicles. which have strong R&D department and experienced engineers. We can design and make OEM/ODM products according to your ideas and samples.
| Item | Truck Filter Lf3346 Diesel Engine Oil Filter CORALFLY Fliter |
| Part NO. | lf3346 |
| Descriptions | oil filter |
| CertifiCORALFLYion | ISO/TS 16949:2009 |
| Service | Professional Services |
| Business Type | Factory/Manufacturer |
| Delivery time | 7-20 days after received your payment |
| Samples | available |
| Stock | Yes |
Attributes
| Outer Diameter | 108 mm (4.25 inch) |
| Thread Size | 1-12 |
| Length | 232 mm (9.13 inch) |
| Gasket OD | 71 mm (2.80 inch) |
| Gasket ID | 62 mm (2.44 inch) |
| Efficiency 50% | 14 micron |
| Efficiency Test Std | SAE J1858 |
| Anti-Drainback Valve | Yes |
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 1.3 bar (19 psi) |
| Bypass Valve Setting HR | 1.4 bar (20 psi) |
| Media Type | Cellulose |
| Collapse Burst | 6.9 bar (100 psi) |
| Type | Full-Flow |
| Style | Spin-On |
Packaged Dimensions
| Gross Length | 4.45 IN |
| Gross Width | 4.45 IN |
| Gross Height | 9.35 IN |
| Gross Weight | 2.015 LB |
| Gross Volume | 0.1071 FT3 |
There are more than 200 agents serving CORALFLY customers with passion and mission.CORALFLY filter cooperate with more than 30 foreign brands. More than 10 million filters are manufactured by us every year and send to the world.
Customized Service
We have a professional UI design team, free design customer LOGO and tags, if you do not have a good design, our CORALFLY design team to provide you with a design, customer review, and then we mass production, to ensure that customers have the best service experience.
Service provide:
OEM ODM & OBM service; Coralfly packaging or according to customer's need packaging
Quality Guarantee:
If there have any quality problems with CORALFLY products, we are willing to be replaced free.
After-sales service:
There is any problem caused by using CORALFLY products:
1). Keep the defective products and contact with Coral Machinery or Coral Machinery distributor
of your religion timely.
2). Do not cut or change any suspected problem products, if necessary, Send the suspected filter
and the attached oil and the coolant sample together to Coral Machinery or Coral Machinery
distributor of your religion timely.
3). Attached with repair document, parts list, labor costs and any other materials which can support
a claim for compensation.
OEM
| Manufacturer Name | Manufacturer Part # |
| A P PARTS | AP3217 |
| AC DELCO | PF1090 |
| ALCO | SP1013 |
| ALLIS-CHALMERS | 04667755 |
| AMERICAN MOTORS CORPORATION | OC29010 |
| ASAS | SP410 |
| ASTRA | 1901604 |
| BIG A | 92825 |
| BOSCH-REXROTH | 0451301156 |
| BRAUD | 20009251 |
| CORALFLY/CORALFLY | 1836107 |
| CORALFLY | 3I1247 |
| CHAMP | LFP4104 |
| CLEAN | DO268 |
| COOPERS | AZL120 |
| CROSLAND | 9304 |
| DIAMOND | FD8320 |
| DONIT | 431097 |
| DORMAN | SE111 |
| EXMAN | OC29010 |
| FIAAM | FT4804 |
| FIAT | 01901604 |
| FIATALLIS | 4667755 |
| FIL | ZP537 |
| FILT | FF448EC |
| FISPA | FOE069 |
| FLO-LINE NO. | PL4104 |
| FORD | 437072 |
| FREIGHTLINER | DNP551604 |
| GENERAL ELECTRIC | SE111B |
| GIESSE | CLH392 |
| GIF | GL338 |
| GREYFRIARS | 952S |
| GUD | Z209 |
| GUIOT | GH2883 |
| HA | HD0329 |
| HITACHI | 01909137 |
| INTERNATIONAL | 313273R93 |
| IVECO | 01901604 |
| KNECHT | AW91 |
| LEYLAND-DAF (LDV) | ABU8533 |
| LOCKHEED | AP3217 |
| LUCAS | G418 |
| MAHINDRA | 0303BAV00170N |
| MARINE PERFORMANCE | MPL5265 |
| MISFAT | 12312000 |
| MULTI PART | ABU8533 |
| MWM | 10325 |
| CORALFLY | 437072 |
| P.B.R. | BC1086 |
| PERKINS | 4324909 |
| PERMATIC | GL338 |
| POWER-PART | AM042904 |
| PUROLATOR | L37232 |
| RENAULT VI | 5001846640 |
| ROVER | ABU8533 |
| SAVARA | 928045 |
| SDMO | 330560160 |
| SOFIMA | S8800R |
| SOPARIS | CV406 |
| TECALEMIT-TJ | R88 |
| TECHNOCAR | R320 |
| TEHO | 4117 |
| TEREX | L2750557 |
| TRUCK CARE | 07101210 |
| UFI | 2311901 |
| UNIPART | ABU8533 |
| VALMET | 80842000 |
| VMC | LF551604 |
| VOLKSWAGEN | 2TB115561 |
| CORALFLY | 3582732 |
| WALGAHN-MOTORENTECHN | 00811373 |
| WFZ | 9025516040 |
| WGB | S313CP |
FAQ
1. What’s Minimum Order Quantity?
A: Each item and/or color has a minimum order quantity, which would be stated in our quote sheet.
Assorted items would be negotiable upon request.
2. What’s kind of your packaging?
Coralfly packaging or customer’s requirements.
3. Could I get some samples? How could i pay the sample payment?
A: We are honored to offer you samples. We accept the sample payment
via Western Union or Bank of China.
4. How long is your Delivery Lead Time ?
A: If there is stock, the lead time is about one week after we get the payment,
if need to be produced, 7-20 days after we get the prepay.
5. Could you Calculate the shipping cost for me?
A: Yes, we are honored to do that for you! Before the freight ,
please well let us know which seaport or airport near your place.
